Description： QL-28 gravity induction + flap Product specification: 88*35*28mm Product weight: 50g Battery capacity: 500mA Power supply: polymer lithium battery Charging time: 3-4 hours
Applicable industries:
Scope of application:
Public security, auxiliary police, auxiliary police, urban management, road administration, administrative law enforcement, traffic law enforcement, high speed traffic police, security, property, fire, railway, emergency rescue, patrol, sanitation, customs, finance, maritime, security and public security patrol, etc.
Technical parameters:
Type: QL-28 gravity induction + flap
Product specification: 88*35*28mm
Product weight: 50g
Battery capacity: 500mA
Power supply: polymer lithium battery
Charging time: 3-4 hours
Operating temperature: -20℃ -+ 60℃
Charging mode: constant trickle
Rated voltage: 3.7-4.2 (VDC)
Flash frequency: 12.5hz
Working time: ≥15 hours (working continuously under full power)
Control mode: touch the button lightly
Power protection: over voltage over current, over charge, over discharge, short circuit, ultra high temperature charge and discharge integrated digital circuit protection
Shell material: PC material (anti-ultraviolet, heat resistant, flame retardant, strong resistance)
Falling height: free falling height of bare machine on cement floor is 6m, and it is lossless for many times

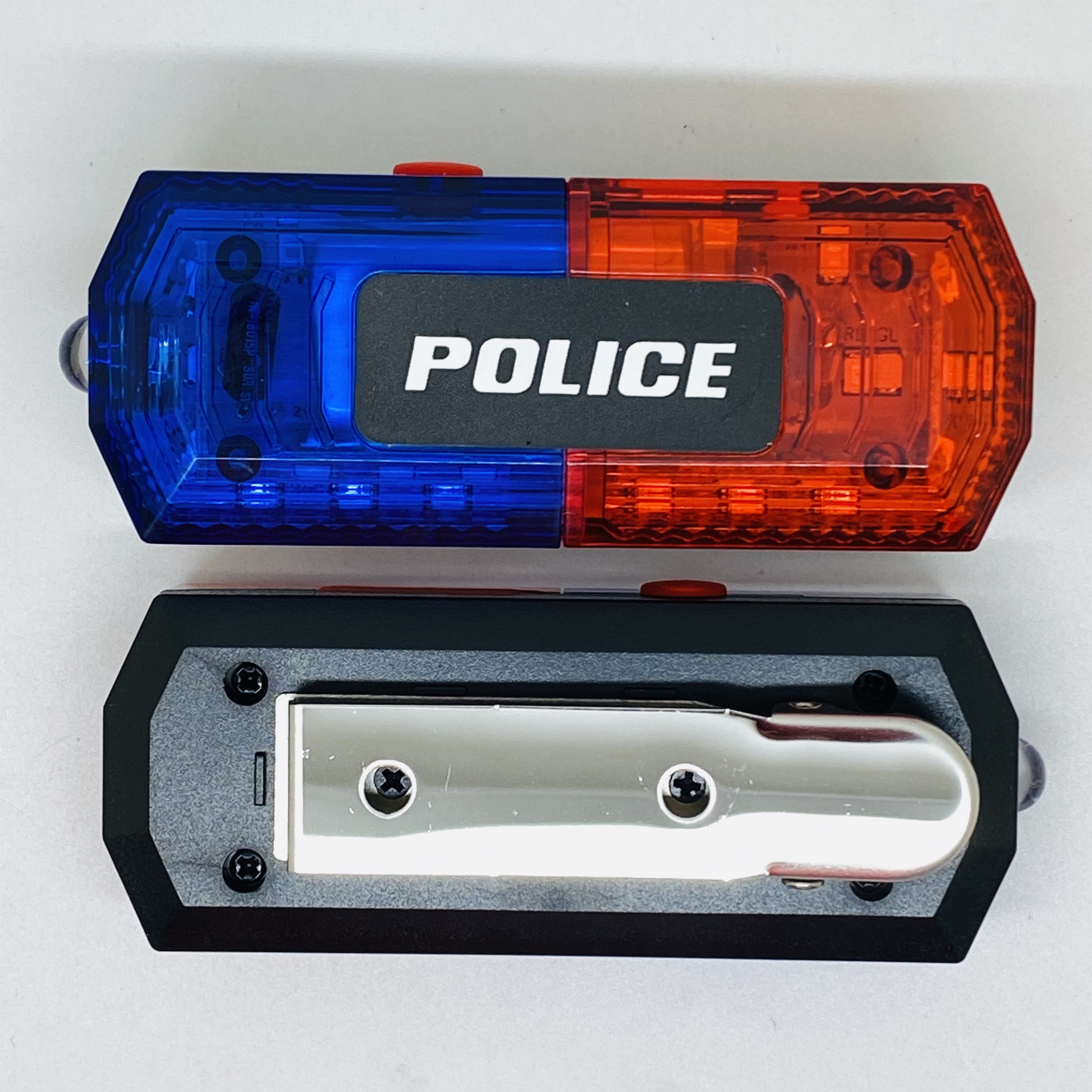

Type 304 mirror stainless steel back clip (or 360° rotating plastic clip)
Charging instruction: please use a matching charger for charging. The charger has a red/green switch LED light, which will be shown as a red light when charging and a green light when fully charged.
Usage:
1. When the switch is pressed for the first time, red and blue LED warning light flashes alternately in the vertical direction, and the hand-tapping switch function is turned on at the same time, when the shoulder
When the lamp tilts more than 45 degrees, the position state is automatically detected, and red and blue LED warning lights flash alternately in the horizontal direction.Flap shoulder
The light can turn off the red and blue work lights, and then tap again to resume the work, so as to cycle.
2. Press the switch for the second time, the hand-tapping switch function is turned off, and the red and blue LED warning light flashes alternately as the first time.

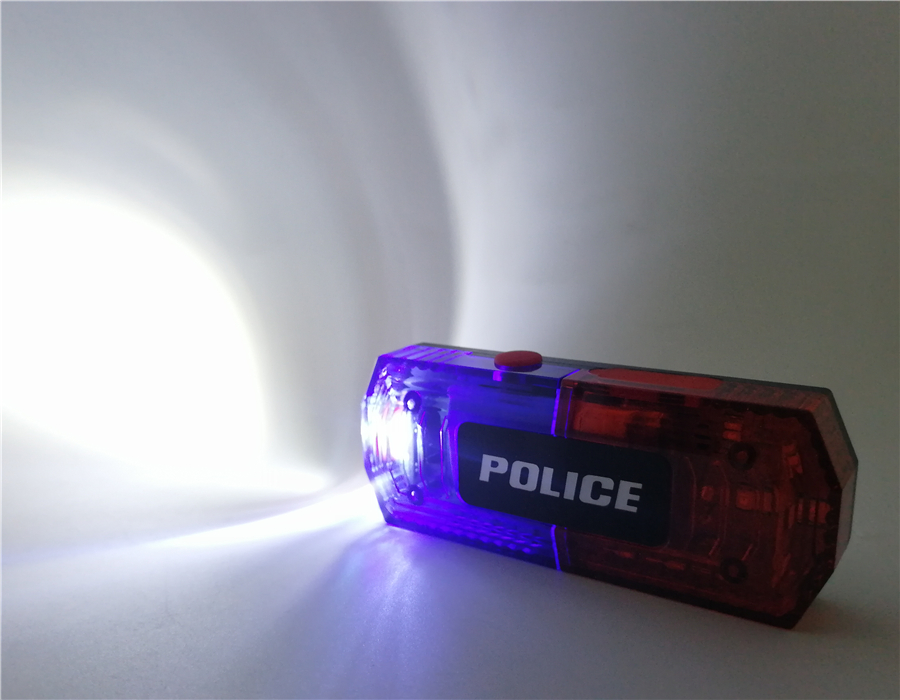

3. Press the switch for the third time, the white LED light in front of the shoulder lamp lighting will be turned on, and the hand-tapping switch function will be turned on.
4. Press the switch for the fourth time, turn off the shoulder lamp, and cycle in turn.
Product configuration:
One shoulder lamp host, one set of charger, manual warranty card, certificate, packaging box.
